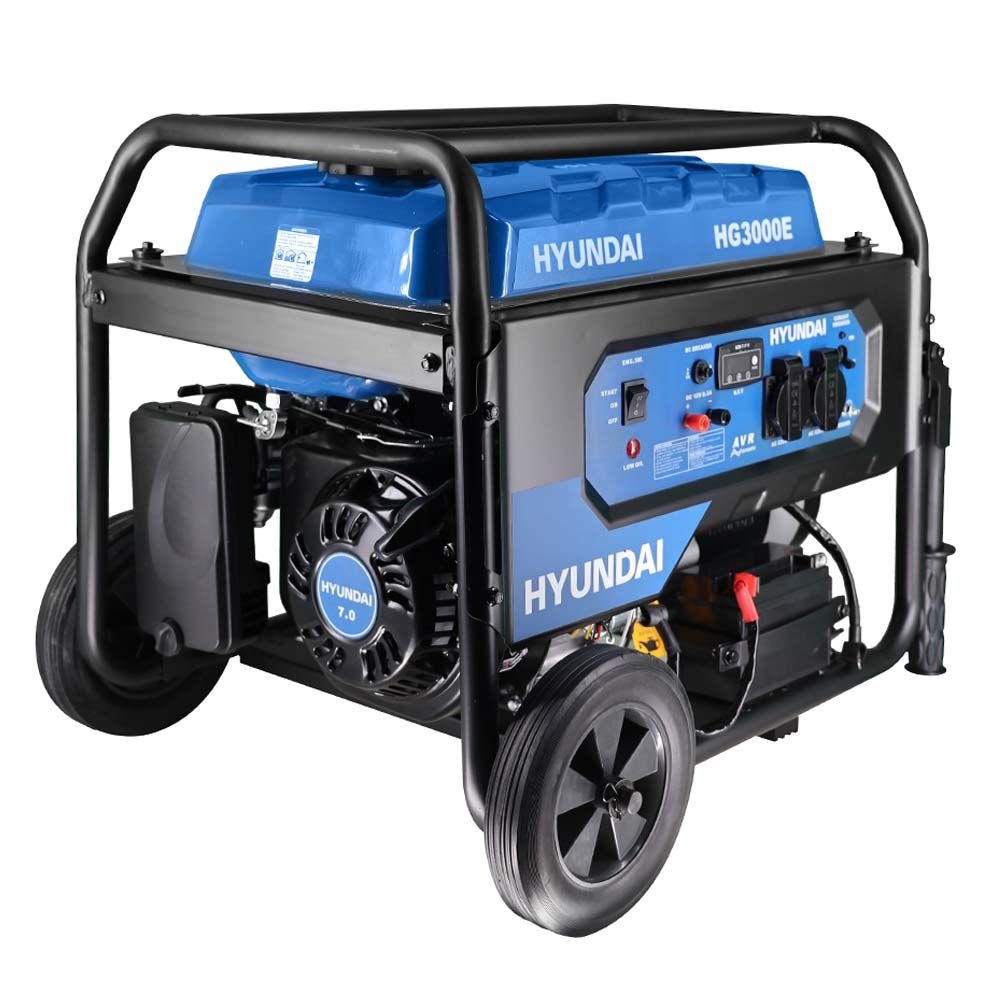

Technical Specification of HYUNDAI HG3000E 3KW Gasoline Generator:
General Data:
Model | HG3000E |
Brand | HYUNDAI |
Rated Power | 2.7 KVA/ 2.7KW |
Max. Power | 3.0 KVA/ 3.0KW |
Volts | 220V |
Frequency | 50HZ |
Engine RPM | 3000 |
Power Factor | 1 |
Max. output (Ampere) | 13.5 A |
Starting System | Electric & Recoil |
Country of Origin | Korea |
Country of Manufacture | China |
Engine General Data:
Engine Brand | HYUNDAI |
Model | H210 |
Fuel | Petrol/ Octane |
Fuel Tank Capacity | 15L |
Cooling System | Air Cooled |
Displacement/HP | 98ml/ 3HP |
Ignition System | Transistorized magento |
Engine Oil Capacity | 1.1L |
Lube Oil Grade | SF or SG (SAE10E-30) |
Alternator General Data:
Brand | HYUNDAI |
Alternator | HYUNDAI |
Th. Class | F |
Output Frequency Wrap | ±5% |
Output Voltage Wrap | ±2% |
Dimension and Noise Level:
Length | 710 mm |
Width | 475 mm |
Height | 574 mm |
Weight | 37 KG |
Sound From 7 m (dBA) 1/4 load | 70 |
Fuel Consumption:
% of Load | Petrol/Octane |
100% Load | 1.6 L/H |
75% Load | 1.2 L/H |
50% Load | 0.8 L/H |
Continuous Duration of Runs @100% Load | 8H |
Continuous Duration of Runs @100% Load | 14H |
Warranty and Installation:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
