Description:
Brand | Sakura |
Type | Transfer Switch |
Country of Made | China |
Mounting type | Panel Mount |

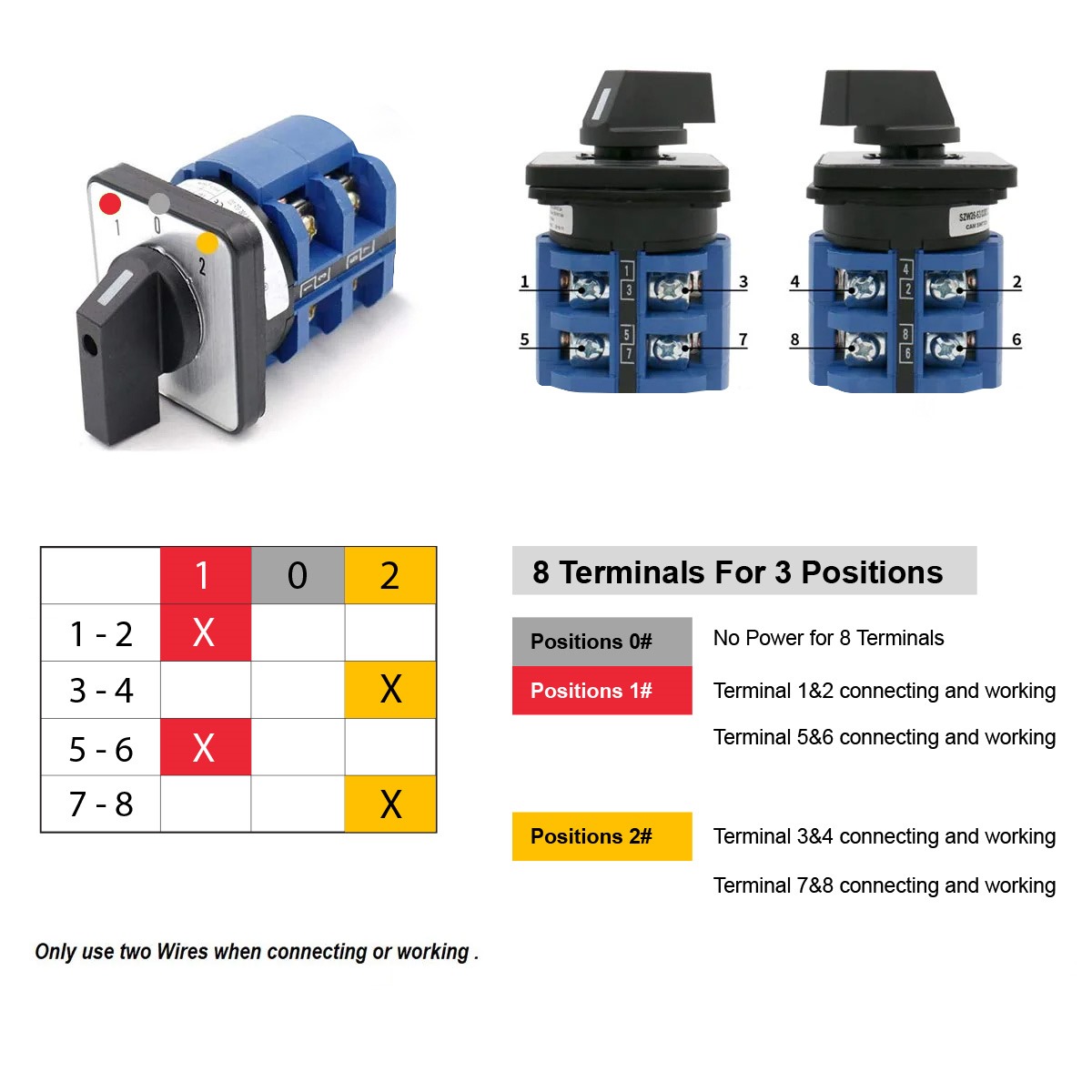

Position | 3 position (1-0-2) |
Ui | 690V |
Ith | 63A |

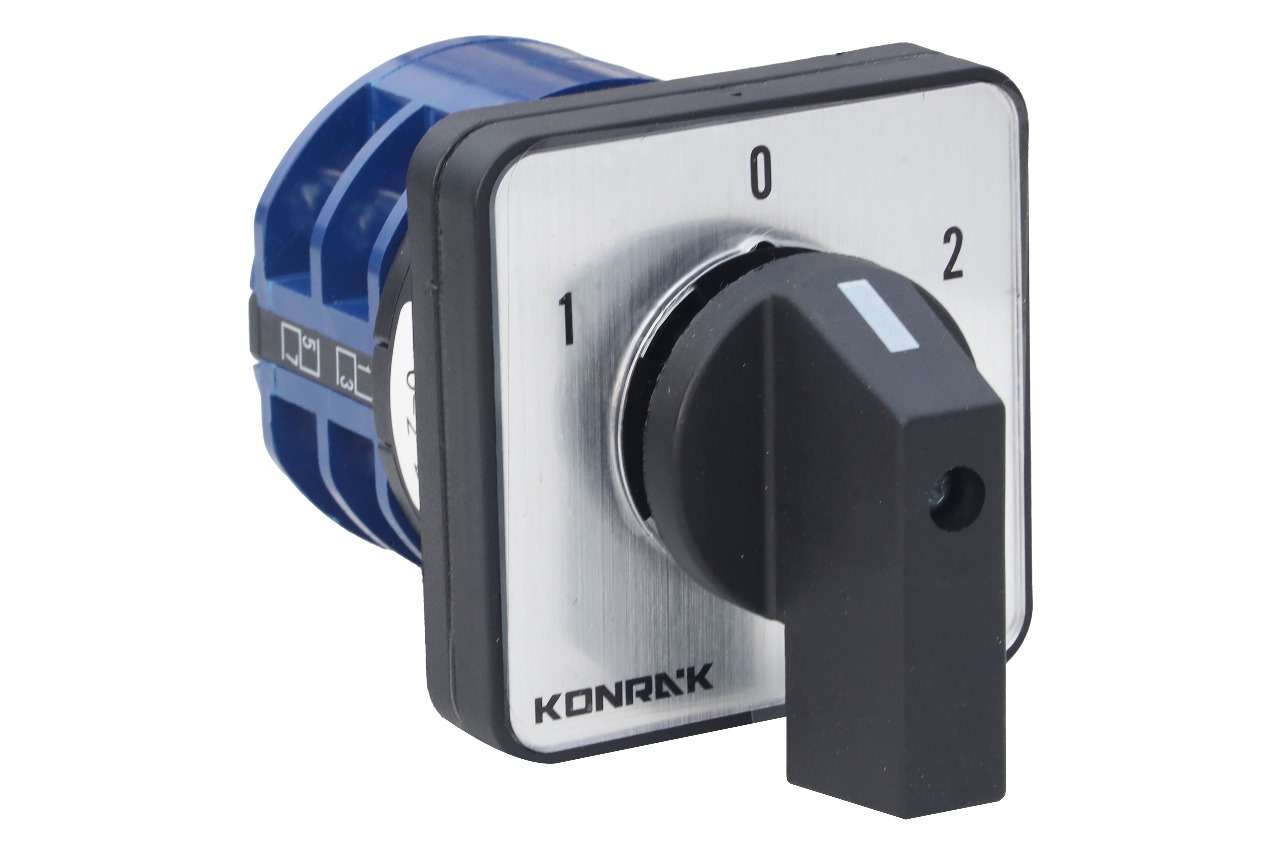

Manual Transfer/Rotary switches are multifunctional electromechanical switches that can be a great alternative to pushbutton switches. Designed to rotate and move to the next position with an internal rotating pin that allows the cap to rotate. The main characteristic of transfer/rotary switches is that they can be used to control different circuits or controls with a single switch. These switches are available in various sizes, shapes, and materials.
Product Advantages:
Silver Alloy Contacts
Low resistivity
Good Conductivity
High Temperature Resistance
Oxidation Resistance
Copper Connection
Thick Galvanized Copper
Good Conductivity
Not easy to wear & tear
Flame Retardant PC Housing
Reinforced Retardant material
Good Insulation Performance
High Temperature Resistance
More Durable
Applications
The Cam Switches are widely implicated in the electrical control-panel-indicate
