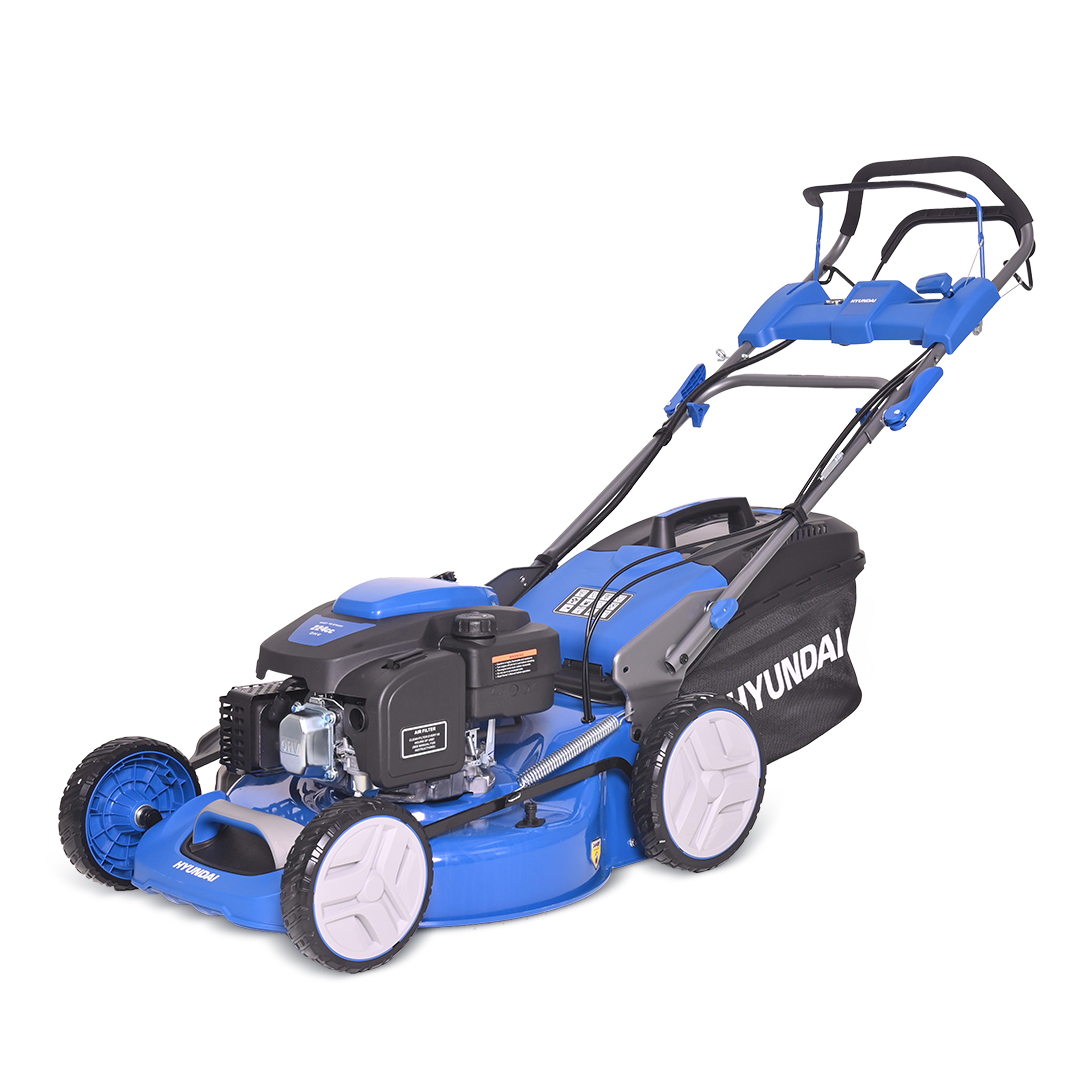

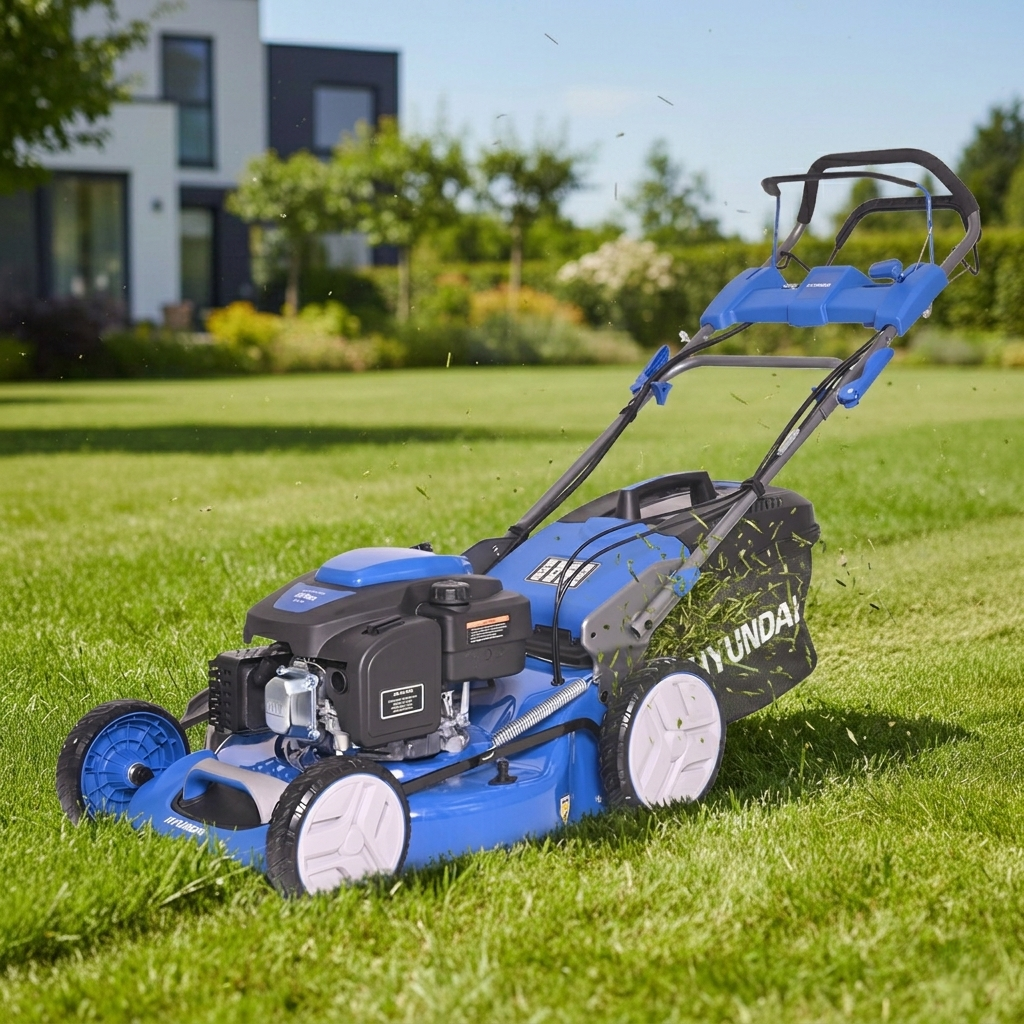

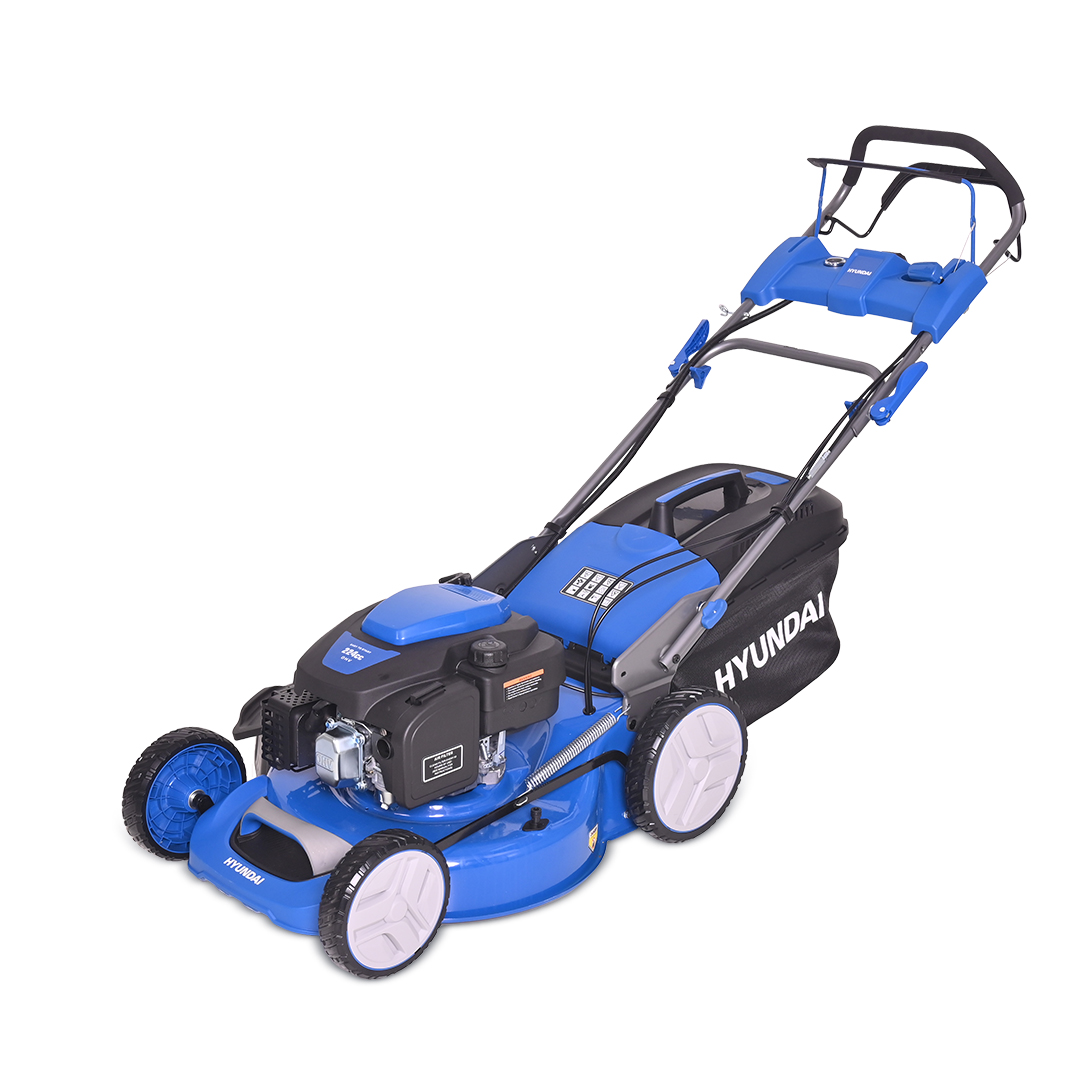

Product Overview: HYUNDAI HYM510S Professional Self-Start, Self-Propelled Lawn Mower
Driven by Global Excellence | Heavy-Duty 196cc Self-Propelled Performance
The HYUNDAI HYM510S is a high-performance, self-propelled machine engineered for those who demand power and efficiency on a large scale. Backed by world-class industrial DNA, this mower combines a massive 220cc engine with a professional drive system to turn the most challenging lawns into a masterpiece of manicured perfection.
1. The HYUNDAI Legacy: A Global Leader in Power
When you choose the HYM510S, you are investing in a brand that is a global giant in the power and automotive sectors. Hyundai is world-renowned for its "Quality First" philosophy, engineering everything from high-speed vehicles to massive industrial systems. This same industrial-grade DNA ensures a machine trusted by millions for its durability, innovation, and relentless reliability.
2. High-Torque Hyundai HV224 4-Stroke Engine
At the heart of the HYM510S is the massive 220cc Hyundai 4-stroke engine. Engineered for high-torque performance, it is designed to maintain peak RPM even through the thickest, tallest grass. It is fuel-efficient, easy to start, and reflects Hyundai’s commitment to building power plants that stand the test of time.
3. Effortless Self-Propelled Drive System
The HYM510S takes the physical work out of lawn care. Equipped with a professional Self-Start, self-propelled drive system, the mower moves forward under its own power. This allows you to guide the machine with ease, maintaining a consistent speed across large open spaces and making light work of slopes or uneven terrain.

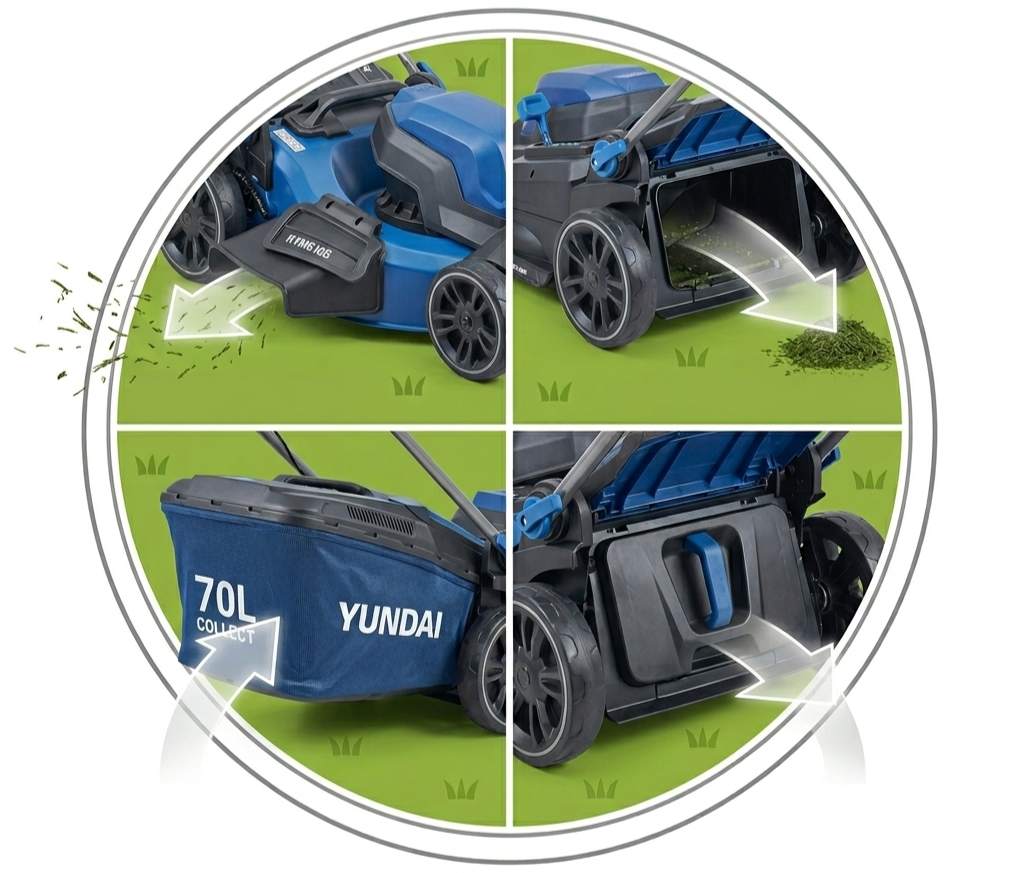

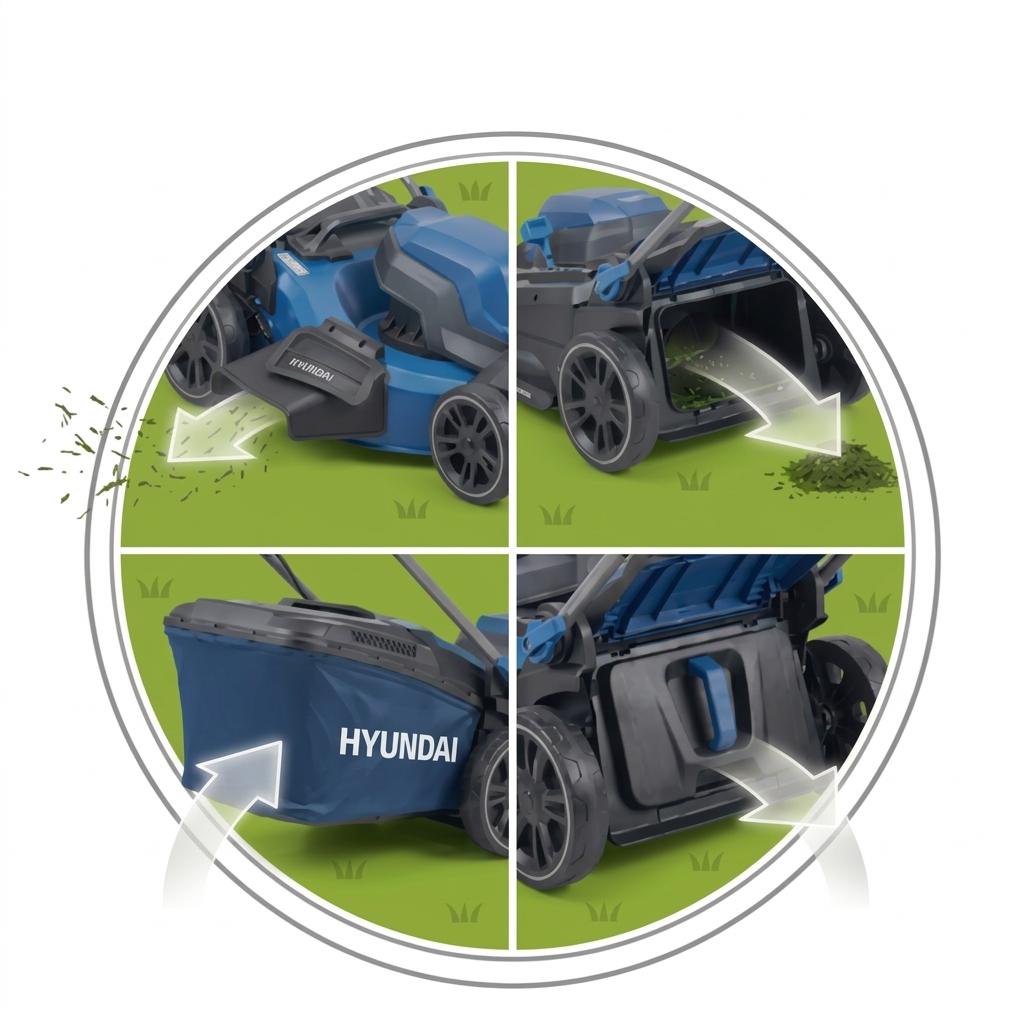

4. 4-in-1 Versatility: The Ultimate Cutting System
The HYM510S adapts to any garden environment with a sophisticated 4-way management system:
Grass Collection: Utilize the massive 70L ventilated bag for a clean, debris-free finish.
Mulching Mode: Finely chop clippings to return natural nutrients and nitrogen to your soil.
Side & Rear Discharge: Tackle overgrown areas or large paddocks quickly without clogging the deck.
5. Industrial-Grade Steel Deck (510mm Cutting Width)
True to Hyundai’s reputation for durable construction, the HYM510S features a rugged treated-steel deck. This heavy-duty platform provides superior protection against debris and a stable cut. The extra-wide 20-inch path allows you to cover more ground in fewer passes, significantly reducing your mowing time.
6. Precision 7-Level Height Adjustment
Take total control of your lawn’s health with a single-lever height adjustment. You can instantly choose between 7 distinct cutting heights (25mm to 75mm). One simple movement adjusts the entire chassis simultaneously, allowing for a manicured spring finish or a longer, moisture-retaining summer cut.
7. Engineered for Safety: Operator Presence Control
Safety is a core Hyundai value. The HYM510S features an integrated Operator Presence Control (OPC) brake system. The moment you release the handle, the engine and the high-speed blade come to an immediate stop, ensuring a safe environment for your home, family, and pets.
Conclusion: The Gold Standard of Professional Mowing
The HYUNDAI HYM510S is a statement of quality and power. By combining a globally trusted brand with heavy-duty self-propelled specifications, this mower offers a level of efficiency and durability that others simply cannot match. It’s tough, it’s versatile, and most importantly—it’s HYUNDAI.
Technical Specification:
General Data:
Brand | HYUNDAI |
Model | HYM510s |
Deck Size | 560mm |
Blade Size | 510mm |
Deck Material | Metal |
Drive Type | Self-Propelled |
Function | Side Discharge/Mulching/Rear Discharge/Bagging |
Cutting Height | 25-75mm |
Height Adjustment Type | One-Lever |
Height Grades | 7 Grades |
Front Wheel Size | 8 inches |
Rear Wheel Size | 10 inches |
Grass Bag Capacity | 65L |
Engine |
|
Engine | HV224 |
Engine Power | 4.4KW & 3600rpm |
Engine Type | 4-stroke Gasoline Engine |
Engine Displacement | 220cc |
Engine Speed | 2800 rpm |
Sound Power Level (LWA) | 98dB(A) |
Start Type | Recoil/Electric Start |
Fuel Tank Capacity | 1.2L |
Engine Oil Capacity | 0.5L |
Spark Plug | F7TC |
Others | |
Packing Size | 865*580*480mm |
Accessories | Spark Plug Wrench, Funnel |
Warranty and Installation:
1 Year Warranty.
Free delivery and installation
Notes: Buyer will bear cable & other accessories costs.
Warranty policy: https://www.sakurapower.com/warranty-policy
